664 Views are Looking for this Product

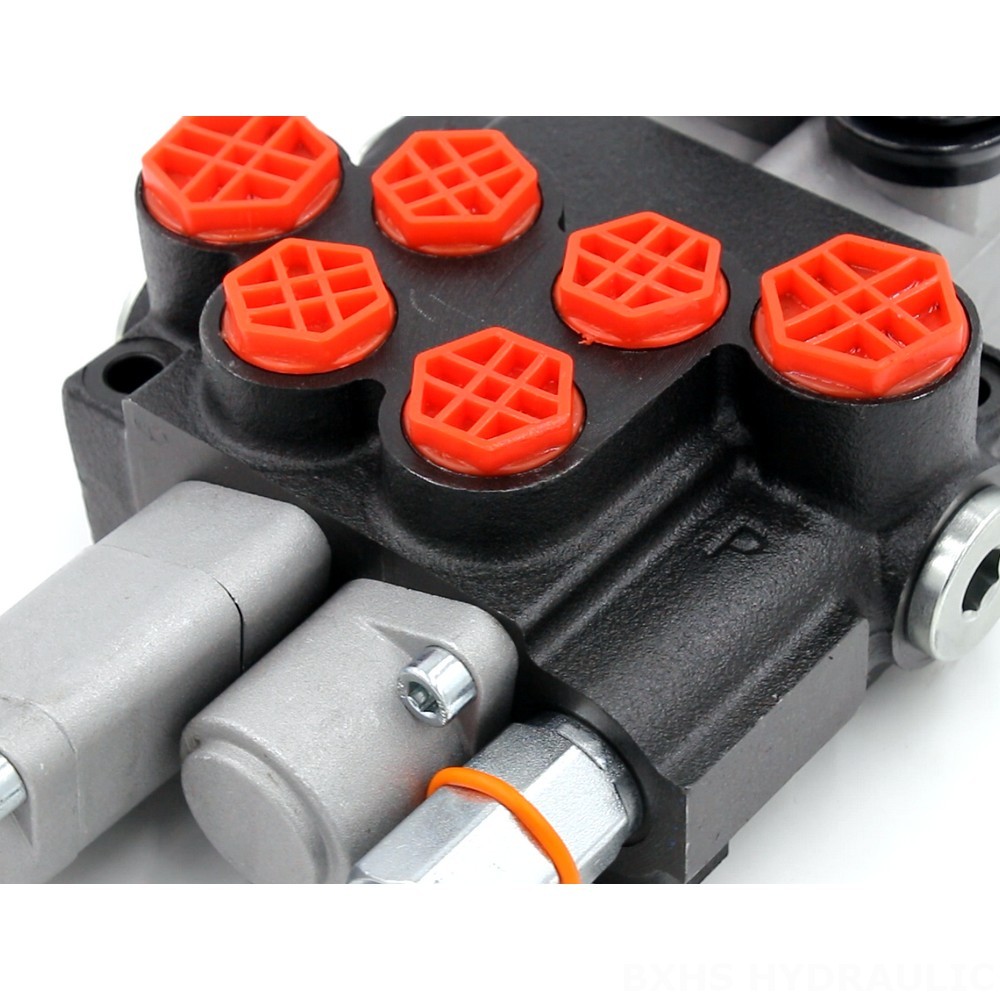

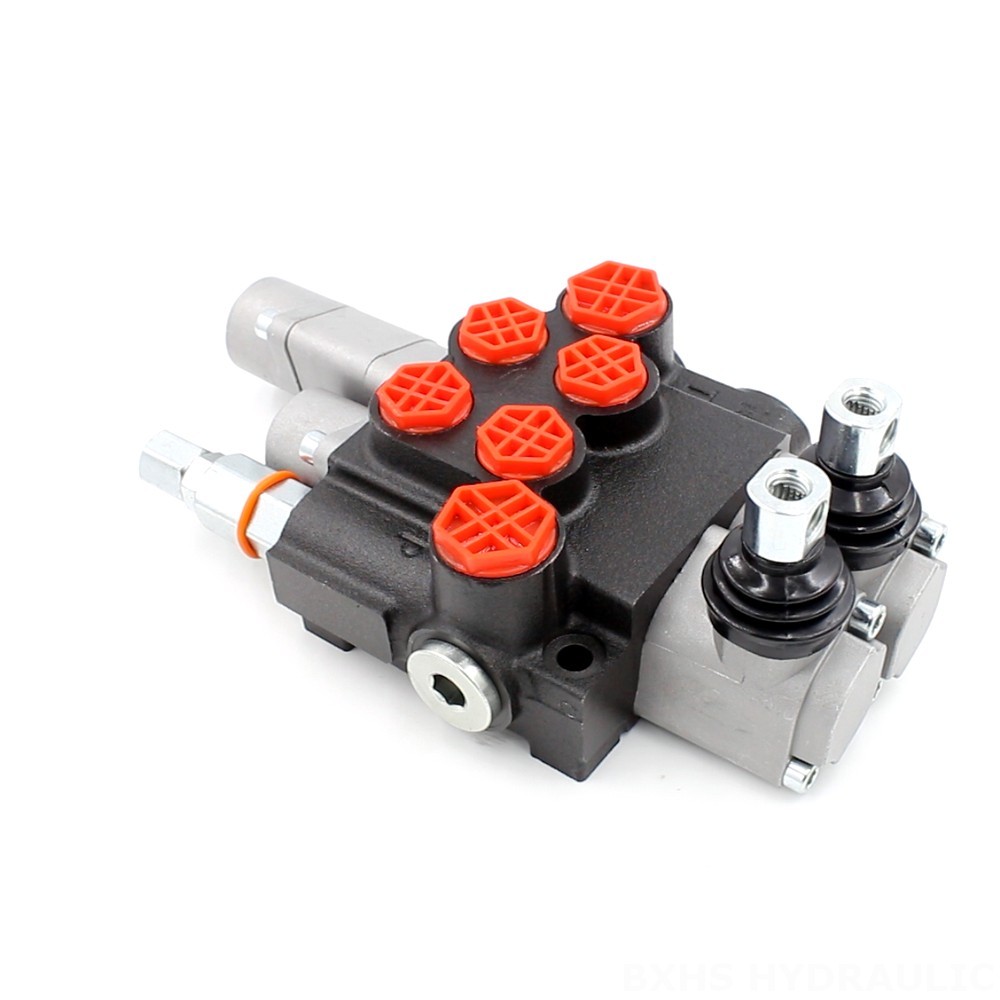

The P40-AQF-G38-G12 is a 2 spool, monoblock directional valve with a rated flow of 40 L/min and a max pressure of 250 bar. It has an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C.
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
|---|---|
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Max Pressure | 250 bar (3600 psi) |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Structure Type | Monoblock valve |
| Control Method | Manual |
| Section | 1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section |
The P40-AQF-G38-G12 is a high-quality, durable directional valve that is perfect for a variety of applications. It is easy to install and maintain, and it comes with a 1-year warranty.
